BUILT ON TRUST™
Empire Underground Tape

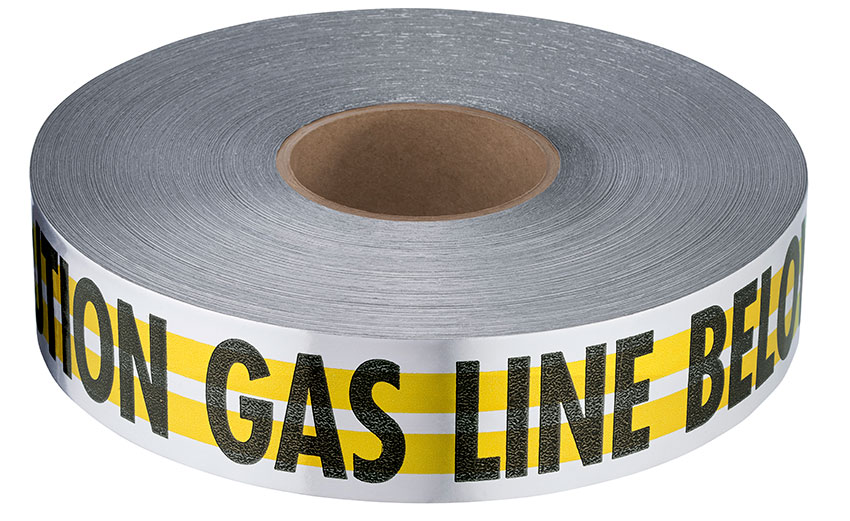

MAGNATEC® PREMIUM DETECTABLE TAPE
- Environmentally safe
- Lead free
- Maximum strength
- Permanent messaging
- Wear resistant
- Detectable by conductive and inductive methods
- Made in USA
| Feature | Method | Value (English) | Value (SI) |
|---|---|---|---|
| Overall Thickness | ASTM D-2103 | 5.0 mil (Nominal) | 0.125 mm |
| Foil Thickness | ASTM D-2103 | .35 mil | 8.89 microns |
| Weight | ASTM D-2103 | 27.5 lbs / 1,000 ft2 | 13.4 kg / 100 m2 |
| Tensile Strength | ASTM D-882 | Length: 7,651 psi | Length: 52.8 Mpa |
| Elongation | ASTM D-882 | Length: 89% | Length: 89% |
| Printability | ASTM D-2578 | > 40 dynes | |
| Plastic Density | ASTM D-792-08 | 1.119 g/cc |
Available in: Blue, Green, Orange, Yellow, Red, Purple, Tan
Download Catalog
THORTEC™ PREMIUM REINFORCED DETECTABLE TAPE
- Environmentally safe
- Lead free
- Maximum strength
- Permanent messaging
- Wear resistant
- Detectable by conductive and inductive methods
- Made in USA with global materials
| Feature | Method | Value (English) | Value (SI) |
|---|---|---|---|
| Overall Thickness | ASTM D-2103 | 7.0 mil (Nominal) | 0.175 mm |
| Foil Thickness | ASTM D-2103 | .35 mil | 8.89 microns |
| Weight | ASTM D-2103 | 34.21 lbs / 1,000 ft2 | 16.70 kg / 100 m2 |
| Tensile Strength | ASTM D-882 | Length: 12,000 psi | Length: 82.74 Mpa |
| Elongation | ASTM D-882 | Length: 24% | Length: 24% |
| Printability | ASTM D-2578 | > 40 dynes | |
| Plastic Density | ASTM D-792-08 | 1.055 g/cc |
Available in: Blue, Green, Orange, Yellow, Red, Purple, Tan
Download Catalog

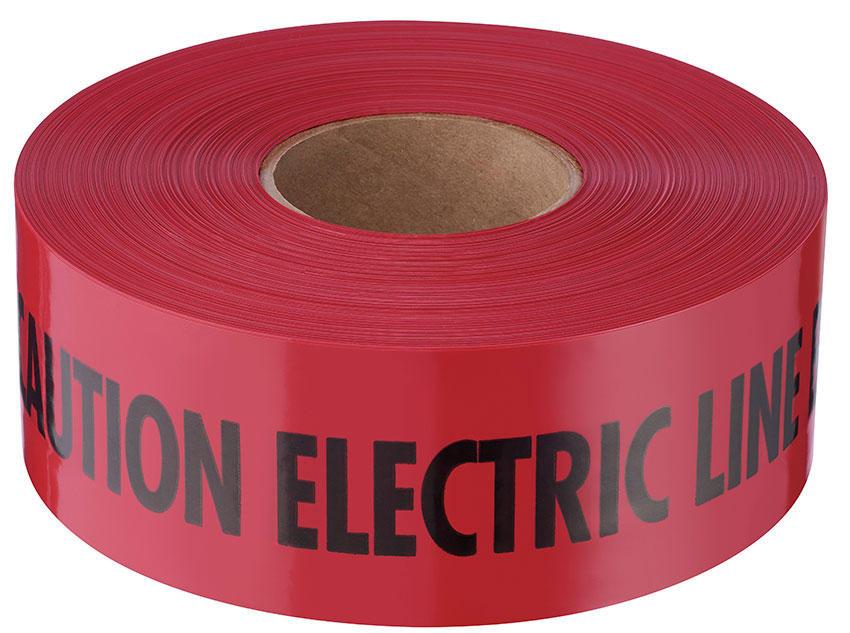

SHIELDTEC® STANDARD NON-DETECTABLE TAPE
- Environmentally safe
- Lead free
- Permanent messaging
- Wear resistant
- Made in USA
| Feature | Method | Value (English) | Value (SI) |
|---|---|---|---|
| Overall Thickness | ASTM D-2103 | 4.0 mil (Nominal) | 0.1 mm (Nominal) |
| Weight | ASTM D-2103 | 17.04 lbs / 1,000 ft2 | 8.32 kg / 100 m2 |
| Tensile Strength | ASTM D-882 | Length: 2,565 psi | Length: 17.7 Mpa |
| Elongation | ASTM D-882 | Length: 492% | Length: 492% |
| Printability | ASTM D-2578 | > 40 dynes | |
| Plastic Density | ASTM D-792-08 | .951 g/cc |
Available in: Blue, Green, Orange, Yellow, Red, Purple
Download Catalog

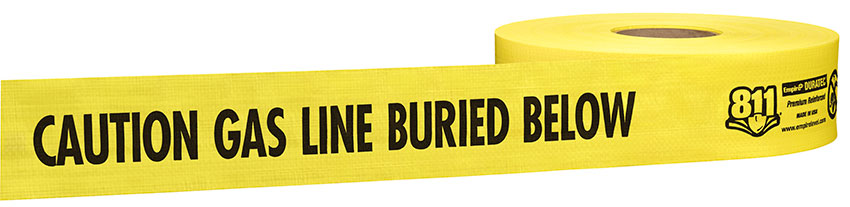

DURATEC® PREMIUM REINFORCED NON-DETECTABLE TAPE
- Environmentally safe
- Lead free
- Permanent messaging
- Wear resistant
- Made in USA with global materials
| Feature | Method | Value (English) | Value (SI) |
|---|---|---|---|
| Overall Thickness | ASTM D-2103 | 7.0 mil (Nominal) | 0.175 mm |
| Weight | ASTM D-2103 | 22.46 lbs / 1,000 ft2 | 10.97 kg / 100 m2 |
| Tensile Strength | ASTM D-882 | Length: 10,620 psi | Length: 73.22 Mpa |
| Elongation | ASTM D-882 | Length: 38% | Length: 38% |
| Printability | ASTM D-2578 | > 40 dynes | |
| Plastic Density | ASTM D-792-08 | .692 g/cc |
Available in: Orange, Yellow, Red
Download Catalog
TRIFLEX™ HEAVY DUTY STRETCH
- Environmentally safe
- Lead free
- Permanent messaging
- Wear resistant
- Made in USA
| Feature | Method | Value (English) | Value (SI) |
|---|---|---|---|
| Overall Thickness | ASTM D-2103 | 6.0 mil (Nominal) | 0.150 mm (Nominal) |
| Weight | ASTM D-2103 | 26.78 lbs / 1,000 ft2 | 13.08 kg / 100 m2 |
| Tensile Strength | ASTM D-882 | Length: 5,940 psi | Length: 40.95 Mpa |
| Elongation | ASTM D-882 | Length: 946% | Length: 946% |
| Printability | ASTM D-2578 | > 40 dynes | |
| Plastic Density | ASTM D-792-08 | 928 g/cc |
Available in: Orange
Download Catalog
MEGASTRETCH™ HI-STRETCH
- Environmentally safe
- Lead free
- Permanent messaging
- Wear resistant
- Made in USA
| Feature | Method | Value (English) | Value (SI) |
|---|---|---|---|
| Overall Thickness | ASTM D-2103 | 4.0 mil (Nominal) | 0.1 mm (Nominal) |
| Weight | ASTM D-2103 | 17.88 lbs / 1,000 ft2 | 8.73 kg / 100 m2 |
| Tensile Strength | ASTM D-882 | Length: 6,340 psi | Length: 43.71 Mpa |
| Elongation | ASTM D-882 | Length: 867% | Length: 867% |
| Printability | ASTM D-2578 | > 40 dynes | |
| Plastic Density | ASTM D-792-08 | .928 g/cc |
Available in: Orange
Download Catalog
- Environmentally safe
- Lead free
- Maximum strength
- Permanent messaging
- Wear resistant
- Detectable by conductive and inductive methods
| Tape | Color | Size | Model Number | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MAGNATEC® Premium Detectable | Striped in any color |
2" x 1,000'
3" x 1,000'
6" x 1,000'
6" x 2,500'
|
MT21
MT31
MT61
MT62.5
|
|||||||||
| THORTEC™ Reinforced Detectable | Striped in any color | 6" x 1,000' | TT61 | |||||||||
| SHIELDTEC® Standard Non-Detectable |
|
|||||||||||
| DURATEC® Reinforced Non-Detectable |
|
|||||||||||
| TRIFLEX® Heavy-Duty Stretch | Orange |
3" x 6,000'
6" x 6,000'
3" x 1,000'
|
TFO36
TFO66
TFO31
|
|||||||||
| MEGASTRETCH® Hi-Stretch | Orange |
3" x 6,000'
6" x 6,000'
|
MSO36
MSO66
|
|||||||||
Available in: Blue, Green, Orange, Yellow, Red, Purple, Tan
Download Catalog
